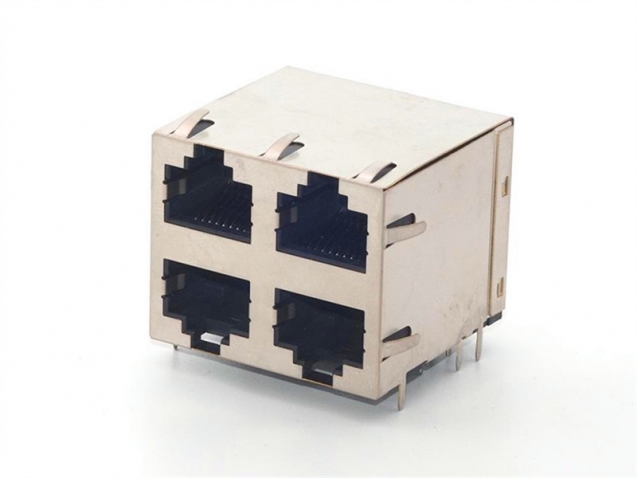

RJ45连接器, 2x2 Ports,无灯带弹,H=25.4mm

產品型號: HR5922SF-2288XXX-XX
產品系列: RJ11/RJ45 雙層多胞系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  • Electrical Characteristic:
    Insulation Resistance:
    500 MΩ Min.
    Contact Resistance:
    30 mΩ Max.
    Withstand Voltage:
    1000 VAC
    Current Rating:
    1.5 Amperes
    Material:
    Housing:
    Thermoplastic UL94V-0
    Contact:
    Fully Gold Plating
    Spring Wire:
    Φ 0.35 mm Gold Plated Phosphor Bronze Contacts with Nickel Underplate
    Shield:
    Nickel Plated Brass
