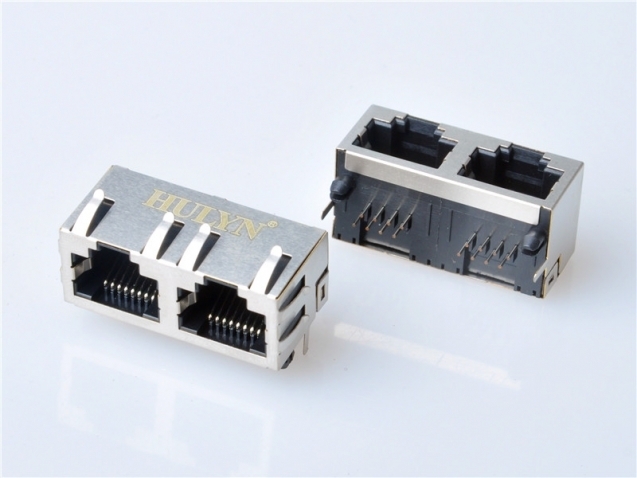

RJ45 1X2 8P8C 屏蔽 90度,插座无灯带弹
產品型號: HR5622SF-1288XXX-1R
產品系列: RJ11/RJ45 單層多胞系列
PDF文檔下載
- 詳細介紹
- 圖紙說明
-
Electrical Characteristic:Insulation Resistance:500 MΩ Min.Contact Resistance:30 mΩ Max.Withstand Voltage:1000 VACCurrent Rating:1.5 AmperesMaterial:Housing:Thermoplastic UL94V-0Contact:Fully Gold PlatingSpring Wire:Φ 0.45 mm Gold Plated Phosphor Bronze Contacts with Nickel UnderplateShield:Nickel Plated Brass
