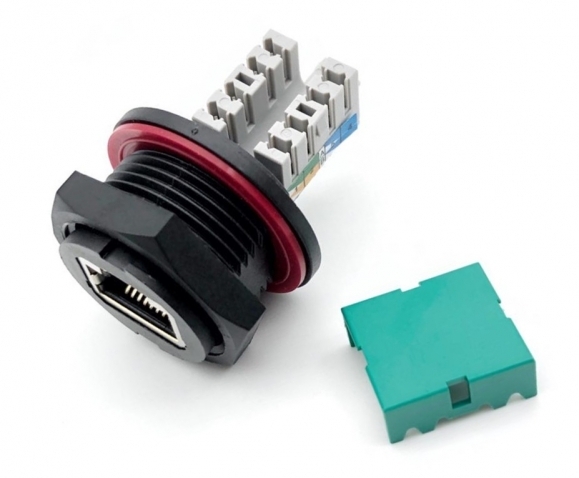

防水RJ45连接器 带PCB板 IDC 180度 CAT6 压线式 IP68
產品型號: HRF-33051F00030-1R
產品系列: 防水RJ45連接器系列
PDF文檔下載
- 詳細介紹
- 圖紙說明
-
Features
- Waterproof RJ45 with IDC.
- Cost-saving.
- IP69K waterproof connectors to cable assemblies.
- Anti-oxidization and anti-UV.
- Compliant with the RoHS Directive.
- Customized orders are welcome.
Specification
- IP Grade: IP69K
- Plastic Housing: Engineering Thermoplastic. Flammability Rating UL 94V-0.
- Contacts: Phosphor Bronze
- Contacts Plating: Gold Plating Over Nickel In Contact
- IDC Pin: Brass
- IDC Pin Plating: Tin Plating Over Nickel
- Gasket: Silicone
- Panel Thick: 1.5 ~ 4.0mm
