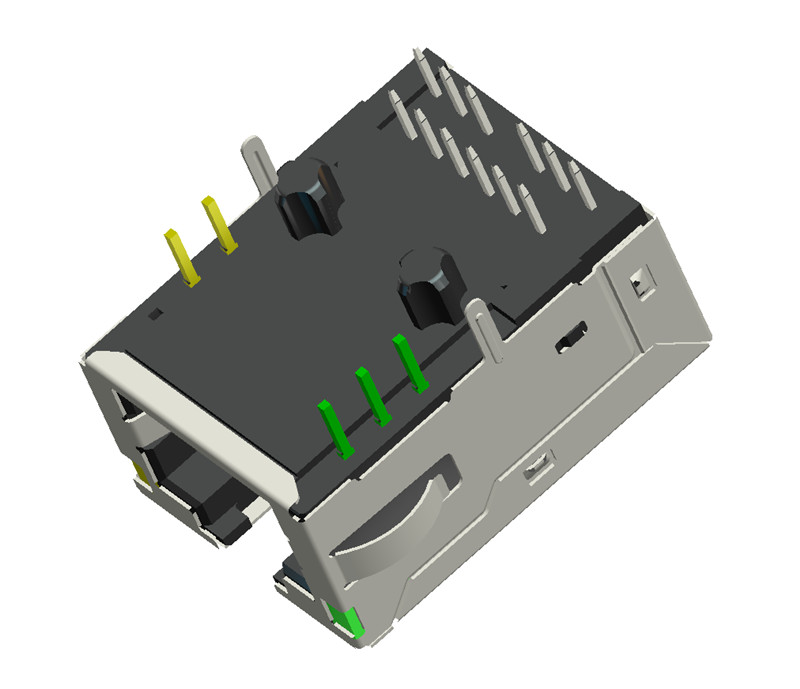

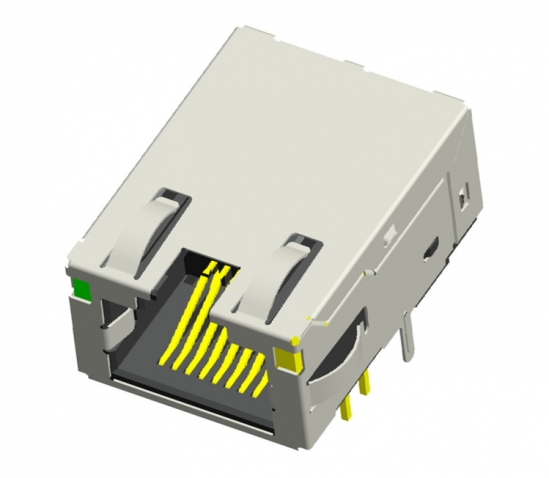

RJ45带变压器插座,最新10G产品 H=11.3mm

產品型號: HRC3-1AK1G14-3M1BB-1R
產品系列: RJ45 1XN Tab-UP系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  • 100/1000Base-T RJ45 single port (1x1) Tab-UP integrated magnetics connector, designed to support

    applications such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC applications.

    Features and Benefits:

    Compliant with IEEE 802.3 standard
    350μH minimum OCL with 8mA bias current
    High performance for maximum EMI suppression
    Low height and small footprint to minimize board space
    RoHS peak wave solder temperature rating 260°C
