產品型號: HRC1-1A21G13-3A1BA-1R
產品系列: RJ45 1XN Tab-UP系列


  • 詳細介紹
  • 圖紙說明

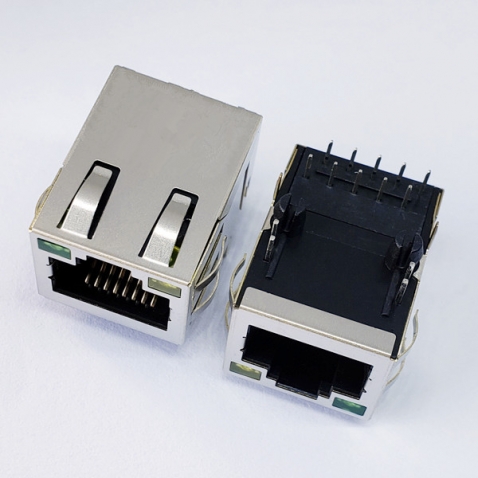

    • 100/1000Base-T RJ45 single port (1x1) Tab-UP integrated magnetics connector, designed to support

      applications such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC applications.

      Features and Benefits:

      Compliant with IEEE 802.3 standard
      350μH minimum OCL with 8mA bias current
      High performance for maximum EMI suppression
      Low height and small footprint to minimize board space
      RoHS peak wave solder temperature rating 260°C
