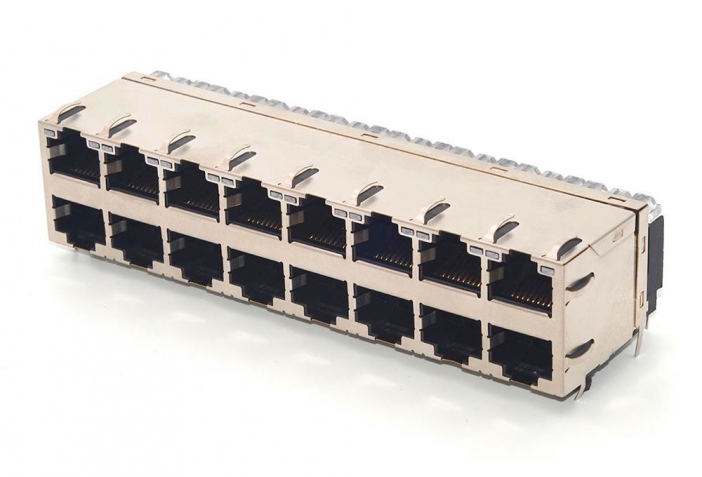

Stacked RJ45 Modular Jack Connector, Side Entry, with LED, 2x8Ports

Model: HR5927SF-2888XXX-DV1-1R
Series: Stacked RJ45 Modular Jack
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • Electrical Characteristic:
    Insulation Resistance:
    500 MΩ Min.
    Contact Resistance:
    50 mΩ Max.
    Withstand Voltage:
    1000 VAC
    Current Rating:
    1.5 Amperes
    Material:
    Housing:
    Thermoplastic UL94V-0
    Contact:
    Selective Gold Plating
    Terminal:
    0.35 mm Thick Gold Plated Contacts with Tin Plated Solder Area
    Shield:
    Nickel Plated Brass
