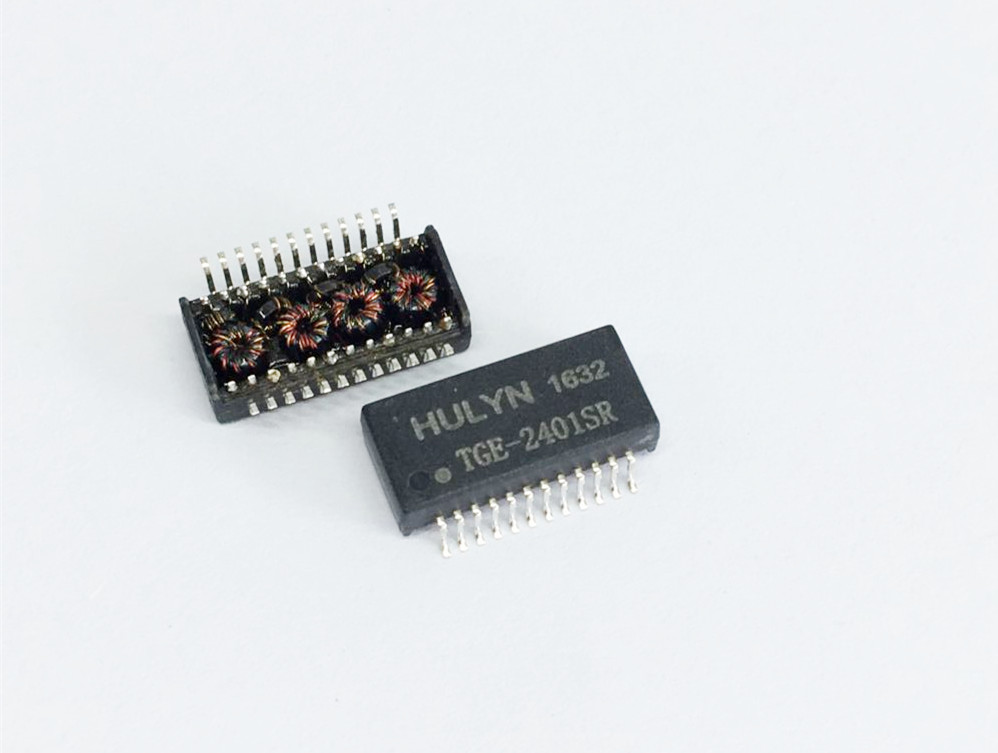

Single Port, 1000BASE-T Ethernet Transformer Modules, SMD,Rohs

Model: TGE-2401SR
Series: LAN Transformer Series
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs
    HULYN Part Number TGE-2401SR
    Speed 1000BASE-T
    Number of Ports SINGLE
    Application - LAN ETHERNET (NON PoE)
    Package SMD
    Temperature 0 TO 70
    AutomDX YES
    Comment SAME AS NL VERSION
    Configuration RX T,C,S
    Configuration TX T,C,S
    Construction OPEN FRAME
    Cores Per Port 8
    Package Height (Inches) 0.225
    Package Height (mm) 5.72
    Package Length (Inches) 0.740
    Package Length (mm) 18.80
    Package Width (Inches) 0.537
    Package Width (mm) 13.64
    Turns Ratio RX 1CT:1CT
    Turns Ratio TX 1CT:1CT
